PREMIUM MOTOR SOLUTIONS
Brushed DC Motors
Traditional carbon brush technology delivering reliable, cost-effective solutions for diverse applications with proven performance characteristics
Brushed DC Motor Models
Our comprehensive range of brushed DC motors designed for reliability and performance across various applications.
N20-12V
Voltage:12V DC
Speed:15,000 RPM
Diameter:12mm
Length:25mm
Torque:0.8 mNm

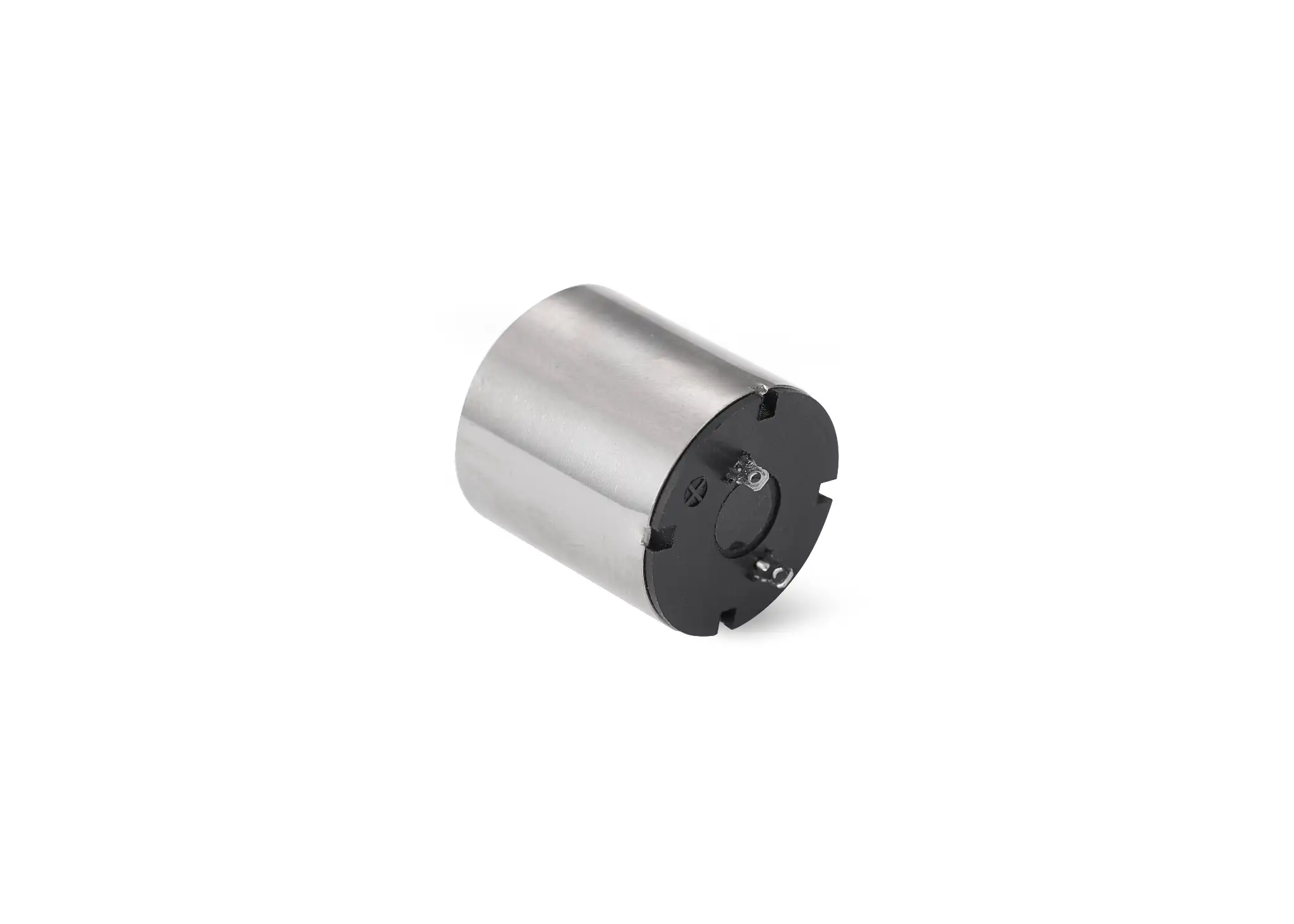

1015-Series
Voltage:3-6V DC
Speed:18,000 RPM
Diameter:10mm
Length:15mm
Torque:2.8 mNm

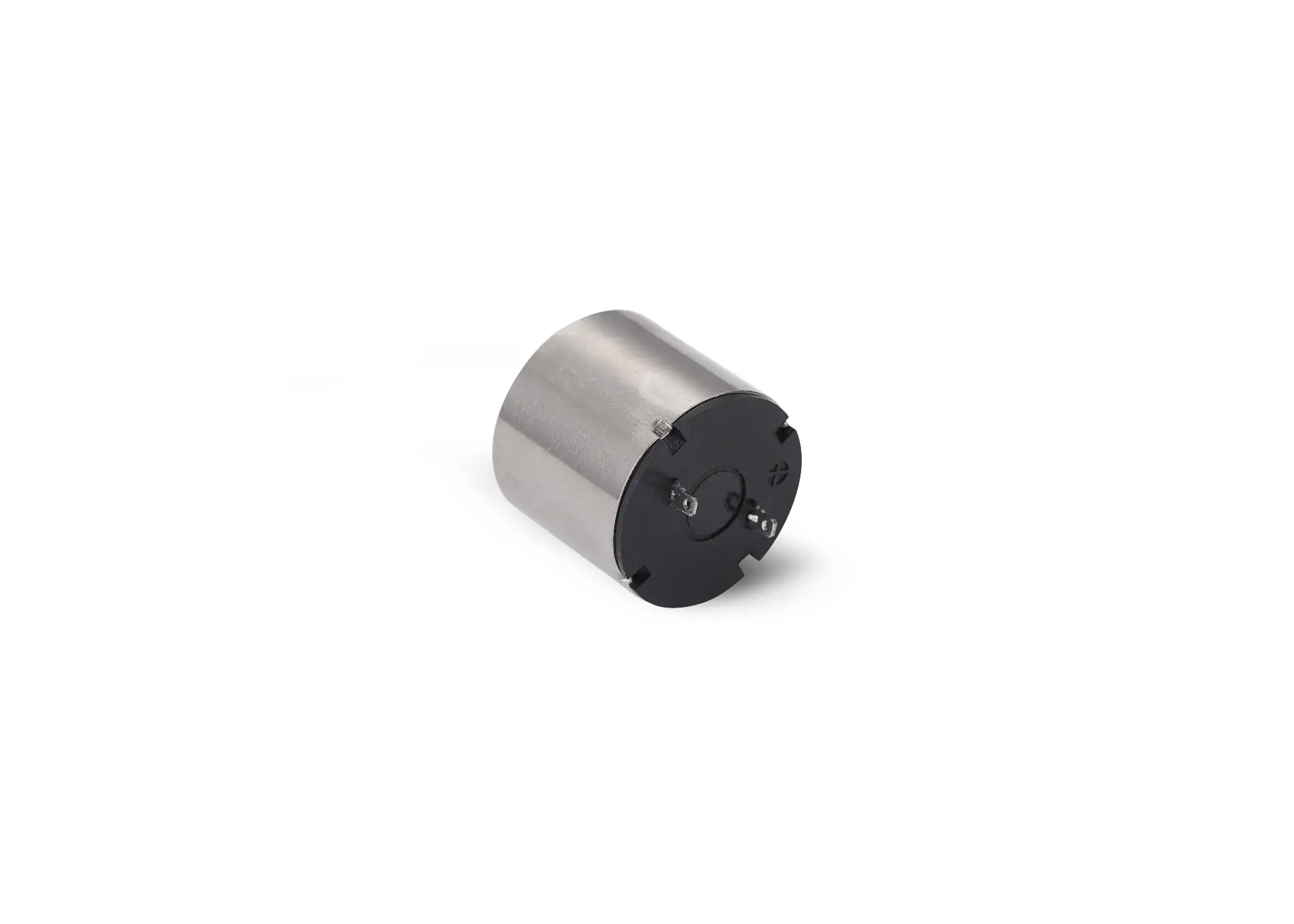

1215-Series
Voltage:6-12V DC
Speed:15,000 RPM
Diameter:12mm
Length:15mm
Torque:4.2 mNm

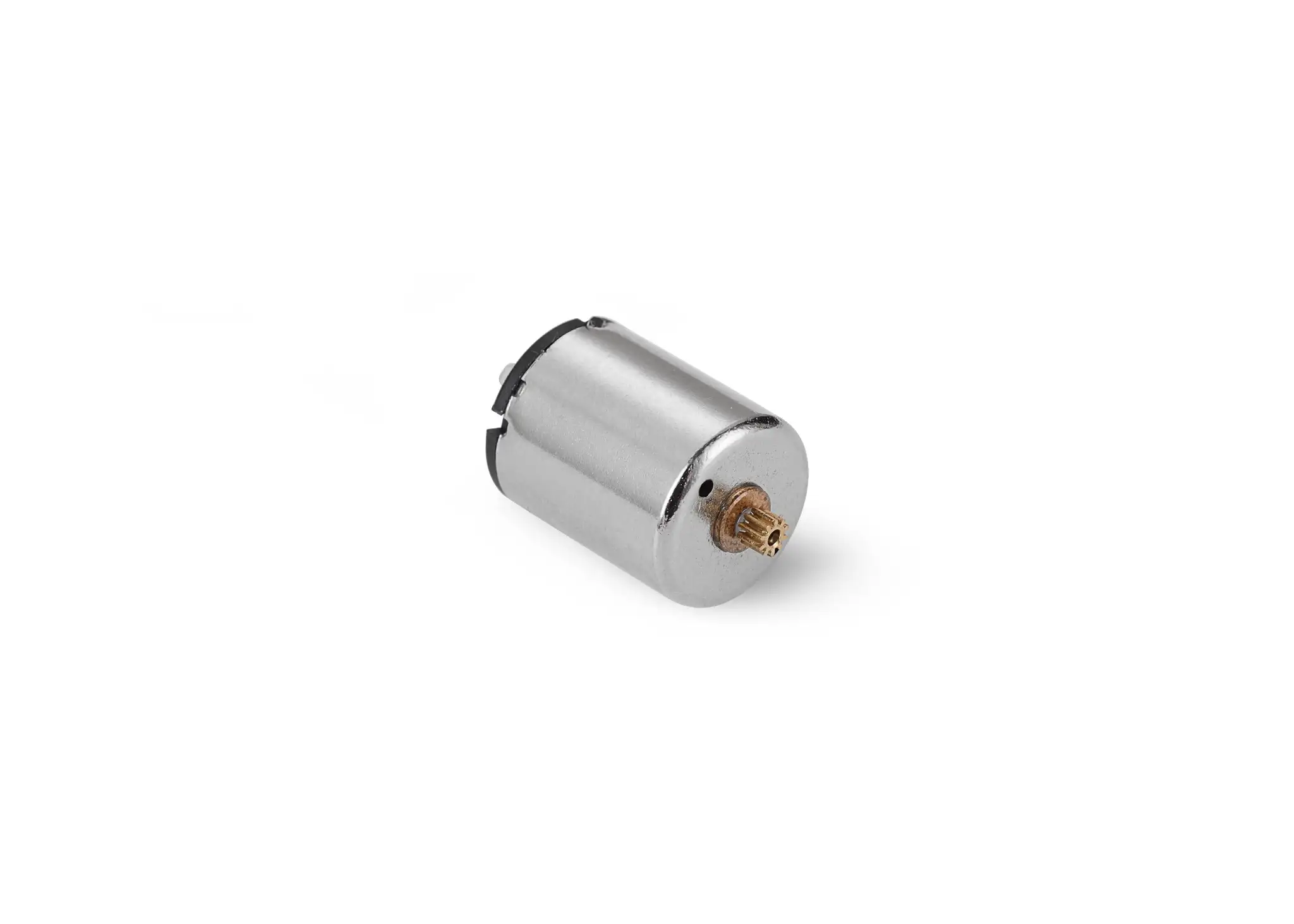

1220-Series
Voltage:6-18V DC
Speed:14,000 RPM
Diameter:12mm
Length:20mm
Torque:5.8 mNm

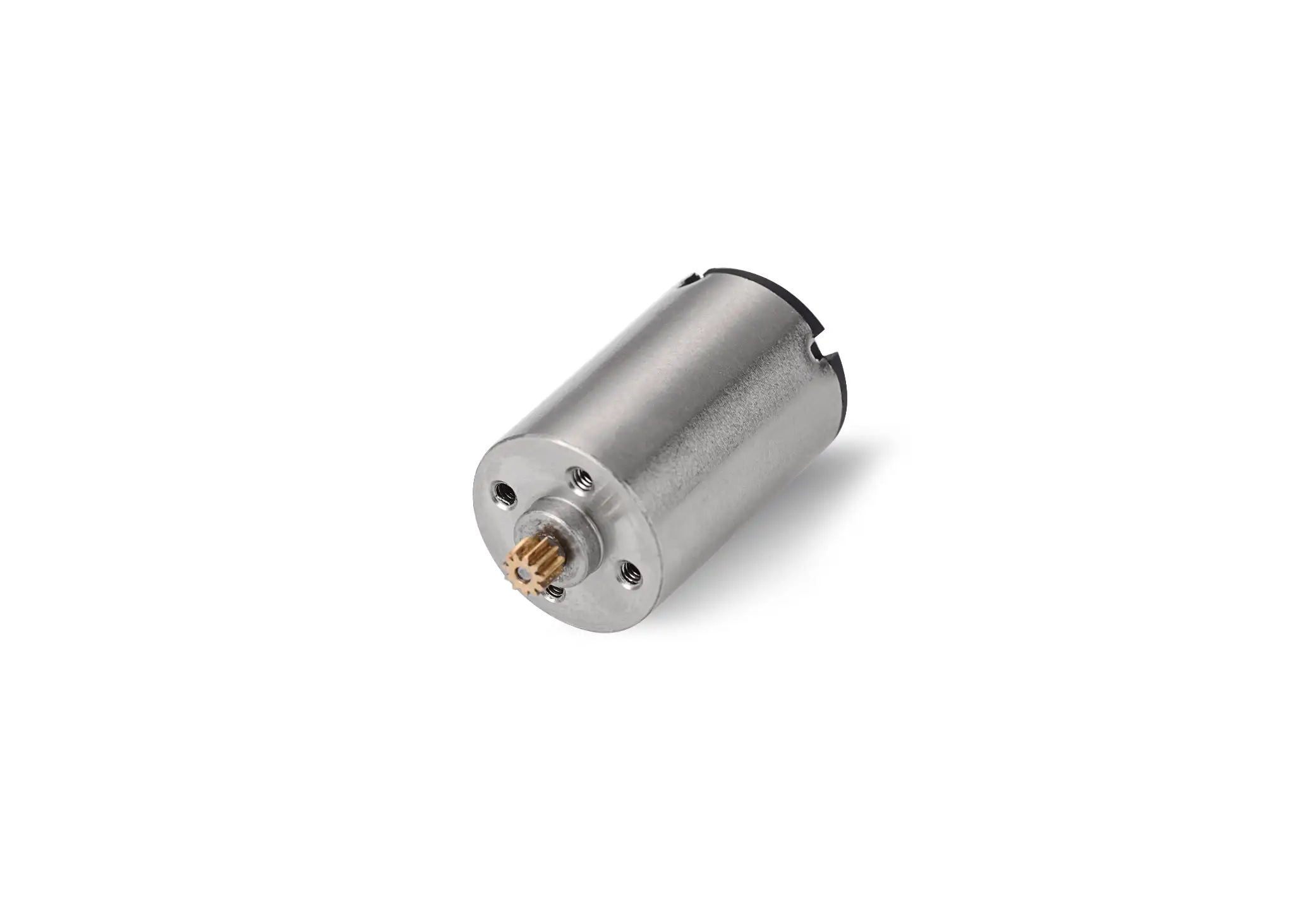

1230-Series
Voltage:12-24V DC
Speed:12,000 RPM
Diameter:12mm
Length:30mm
Torque:8.5 mNm

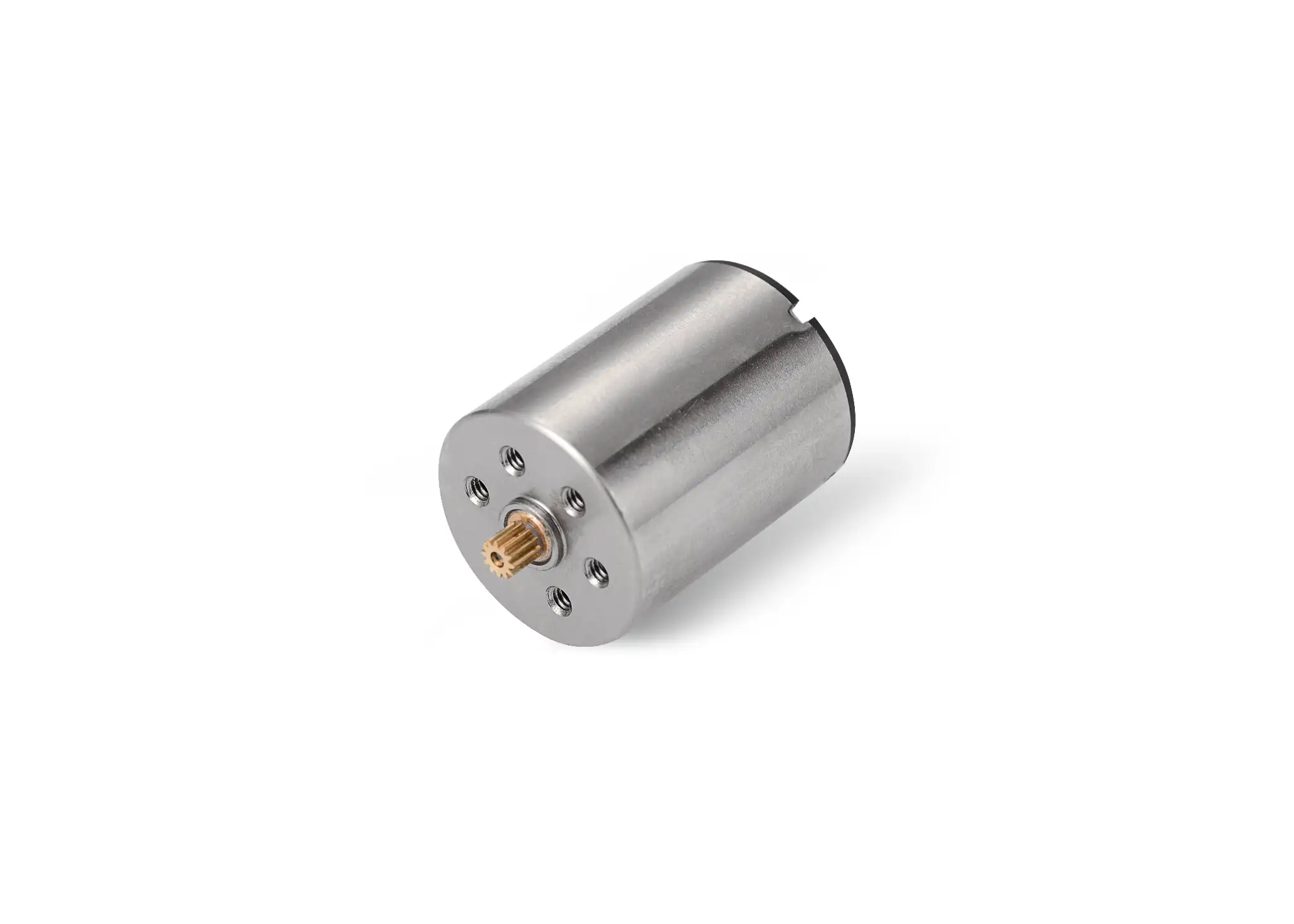

1320-Series
Voltage:6-18V DC
Speed:13,500 RPM
Diameter:13mm
Length:20mm
Torque:6.2 mNm

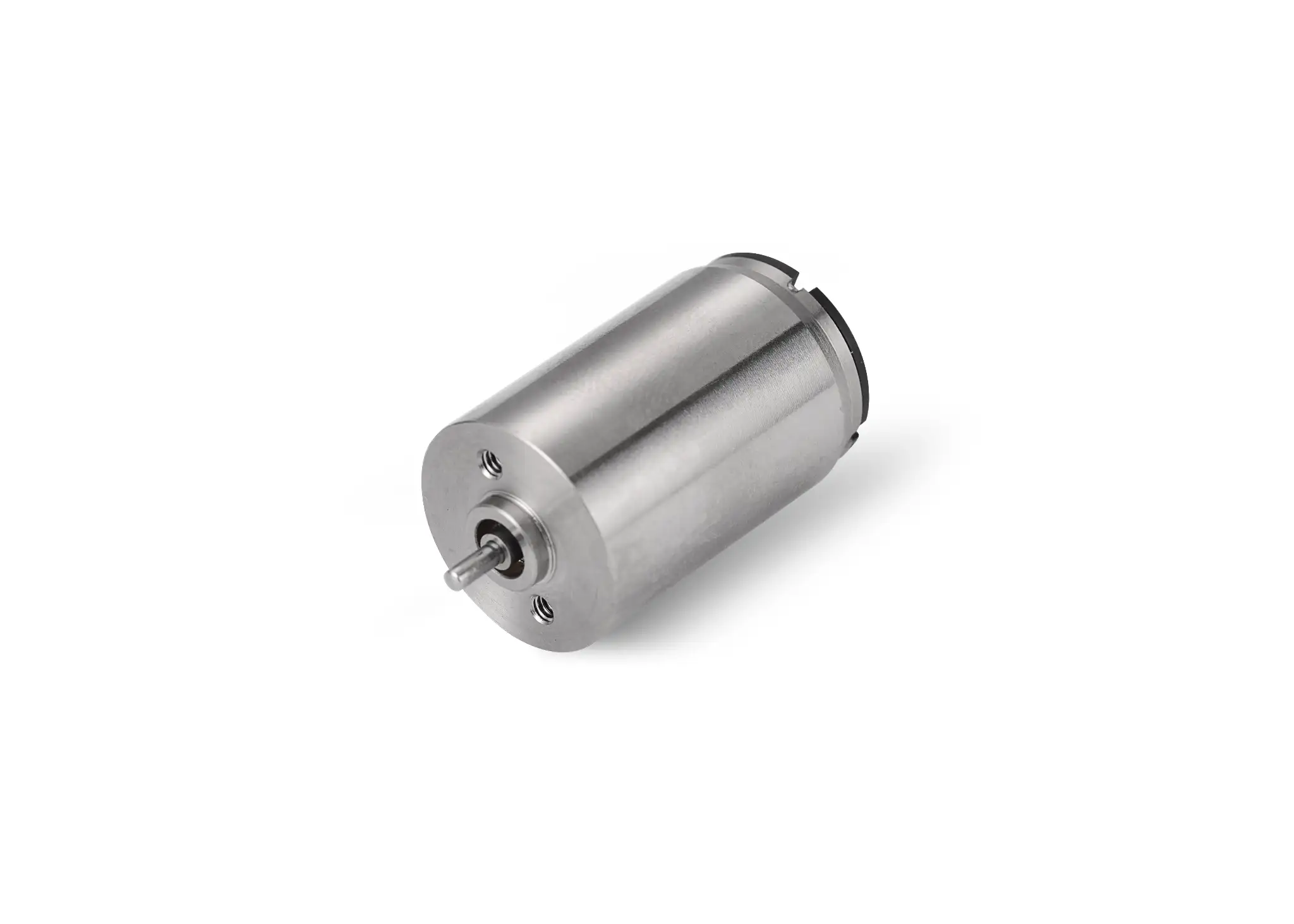

1328-Series
Voltage:12-24V DC
Speed:11,500 RPM
Diameter:13mm
Length:28mm
Torque:9.8 mNm

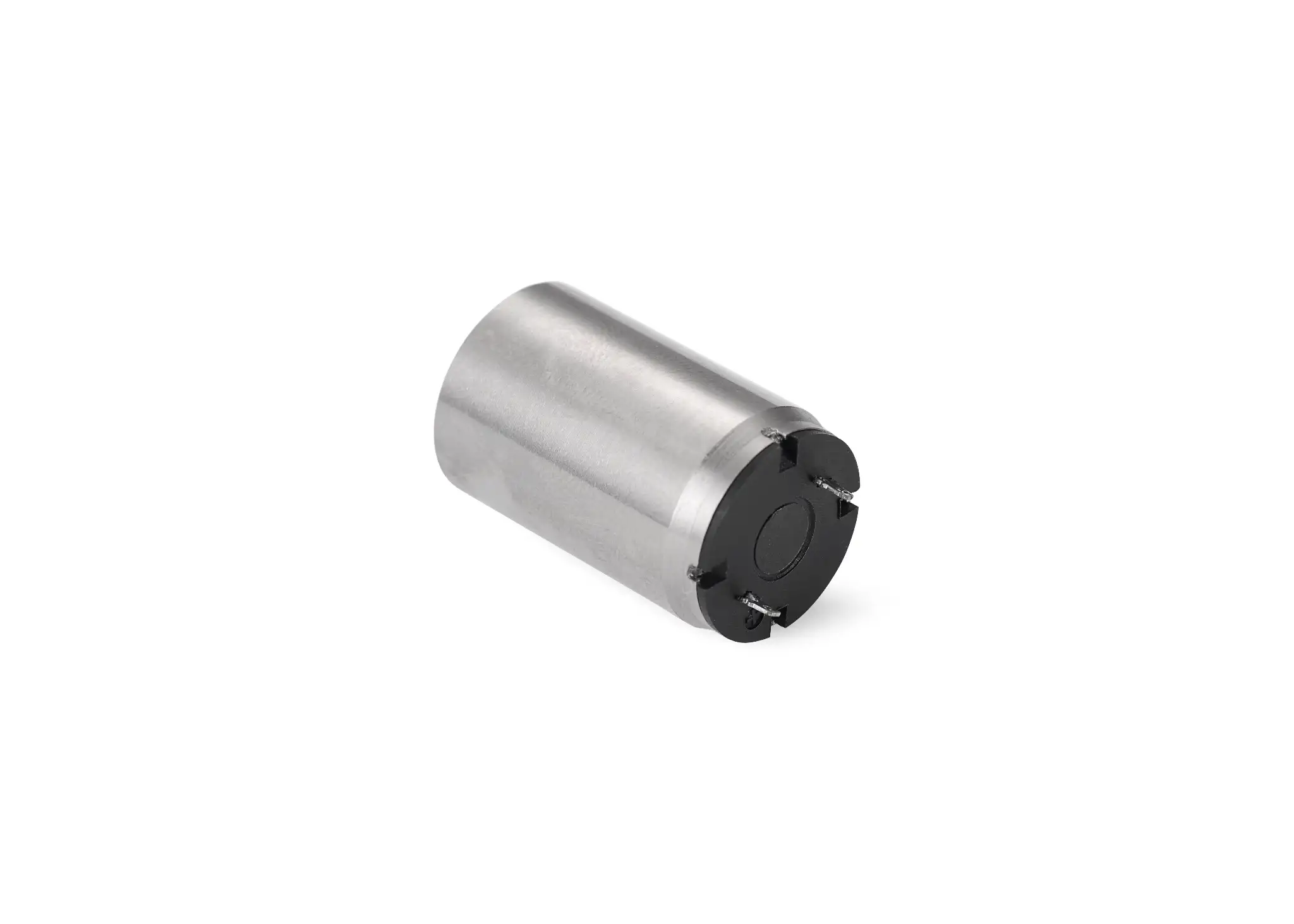

1332-Series
Voltage:12-24V DC
Speed:10,500 RPM
Diameter:13mm
Length:32mm
Torque:12.5 mNm

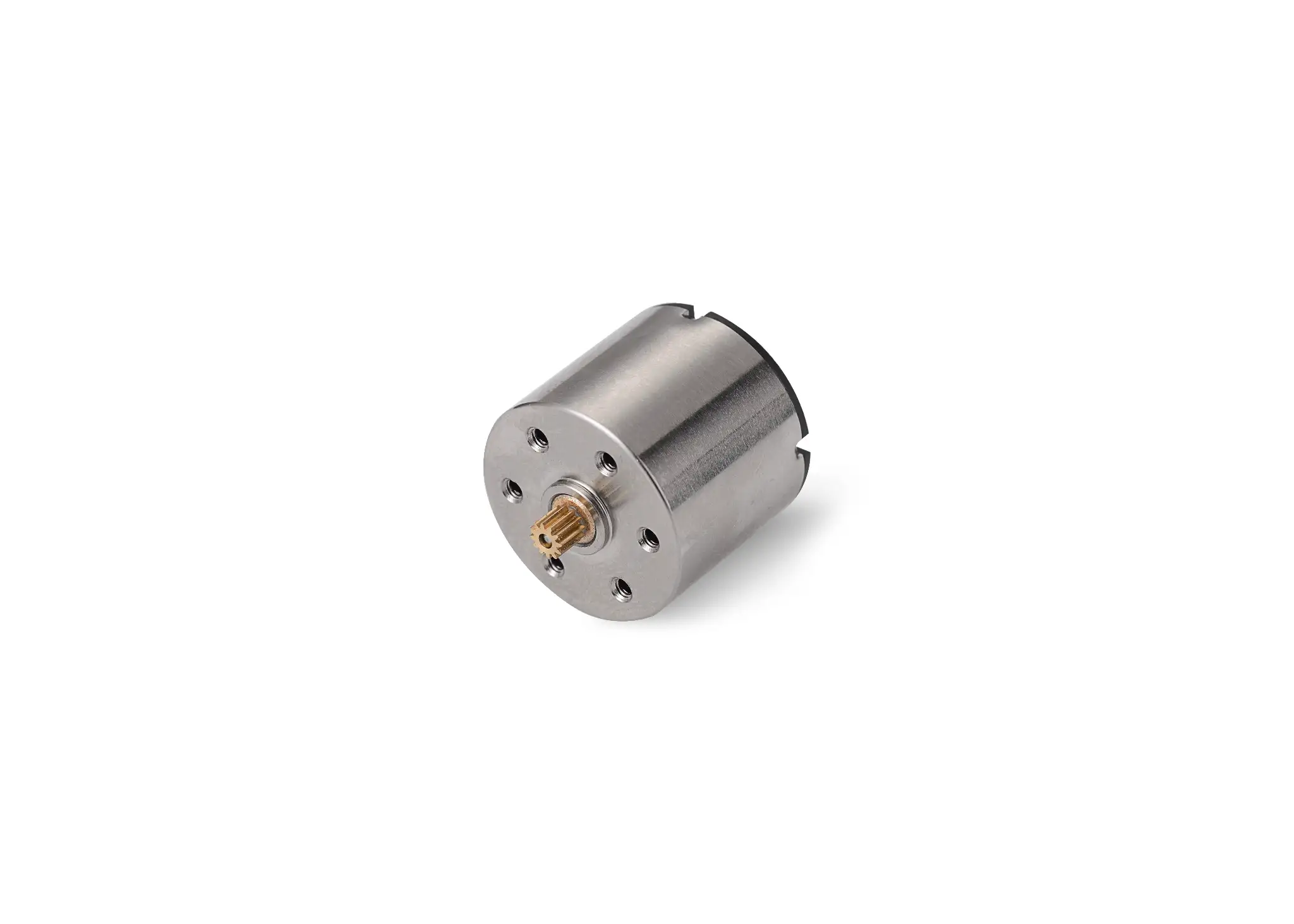

1515-Series
Voltage:6-18V DC
Speed:12,000 RPM
Diameter:15mm
Length:15mm
Torque:7.5 mNm

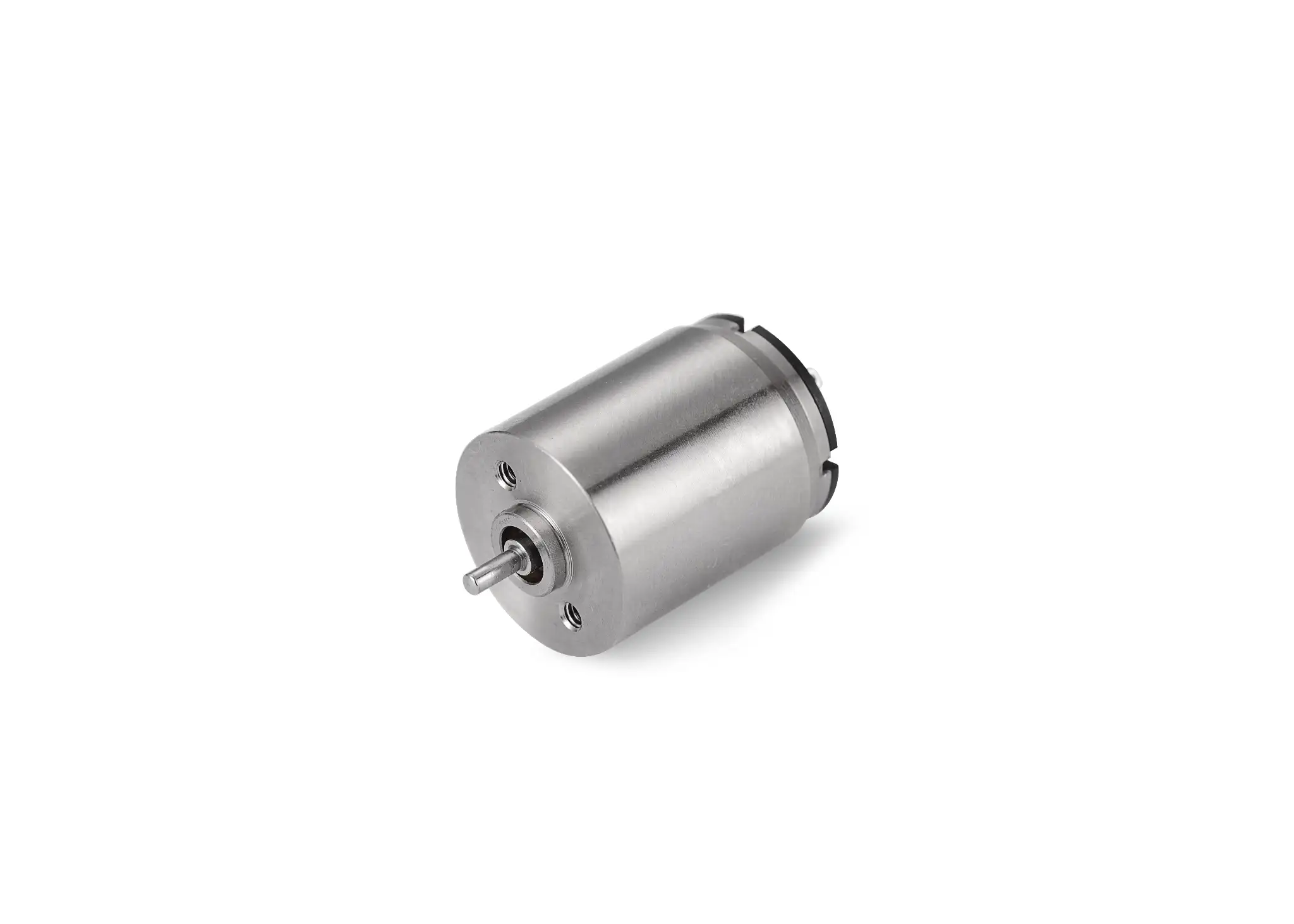

1620-Series
Voltage:12-24V DC
Speed:11,000 RPM
Diameter:16mm
Length:20mm
Torque:9.2 mNm

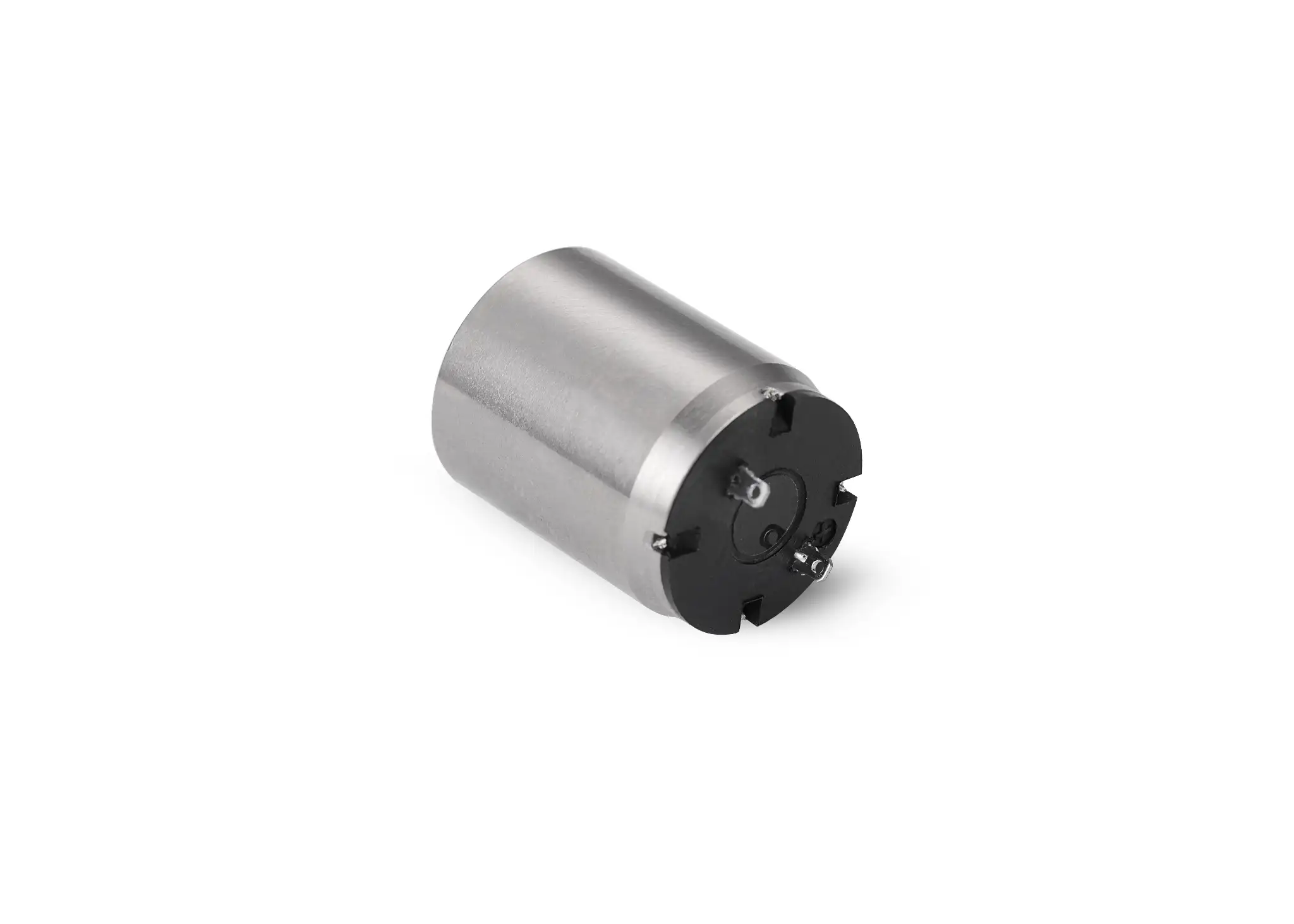

1625-Series
Voltage:12-24V DC
Speed:10,500 RPM
Diameter:16mm
Length:25mm
Torque:12.8 mNm

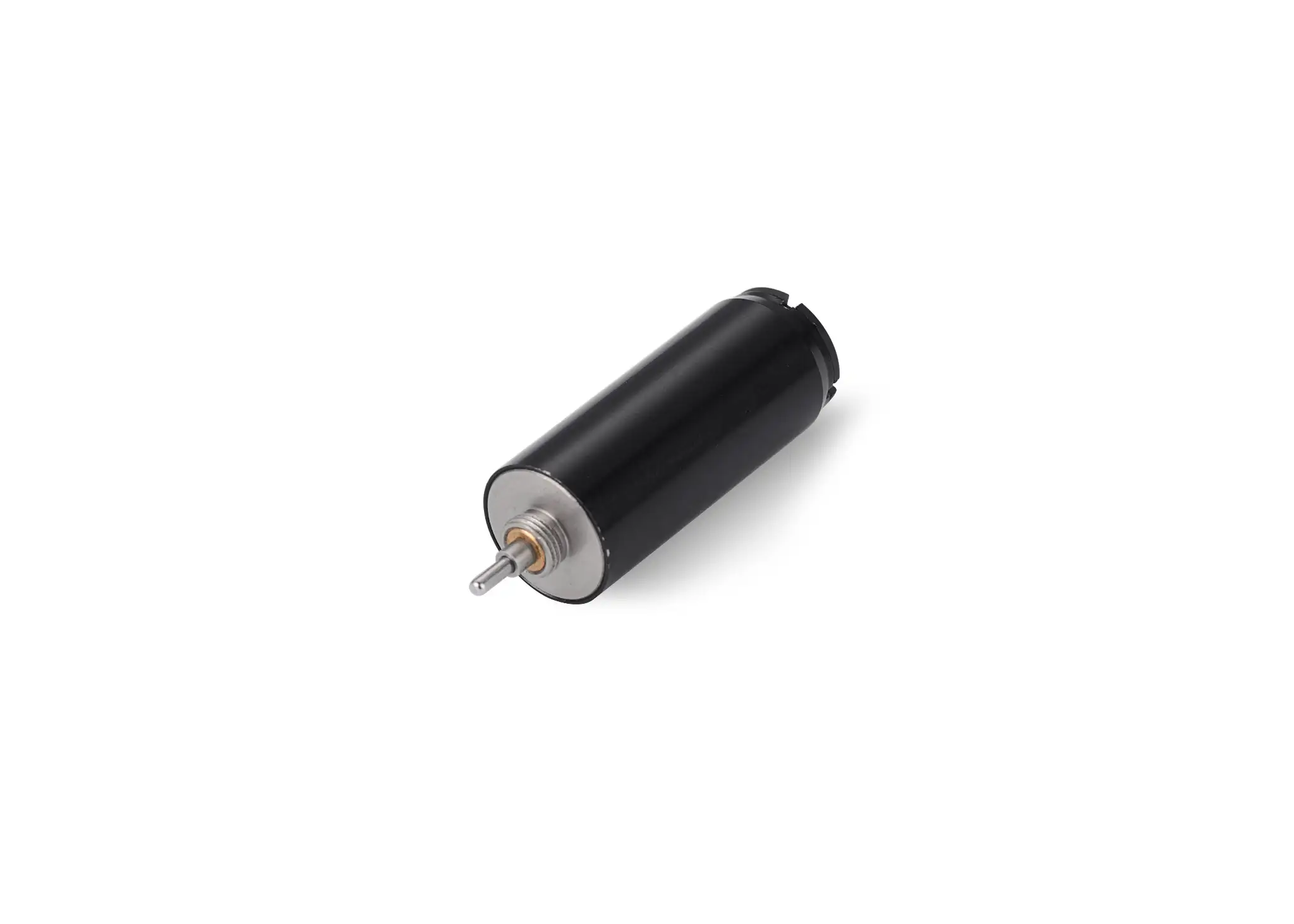

1642-Series
Voltage:12-36V DC
Speed:8,500 RPM
Diameter:16mm
Length:42mm
Torque:18.5 mNm

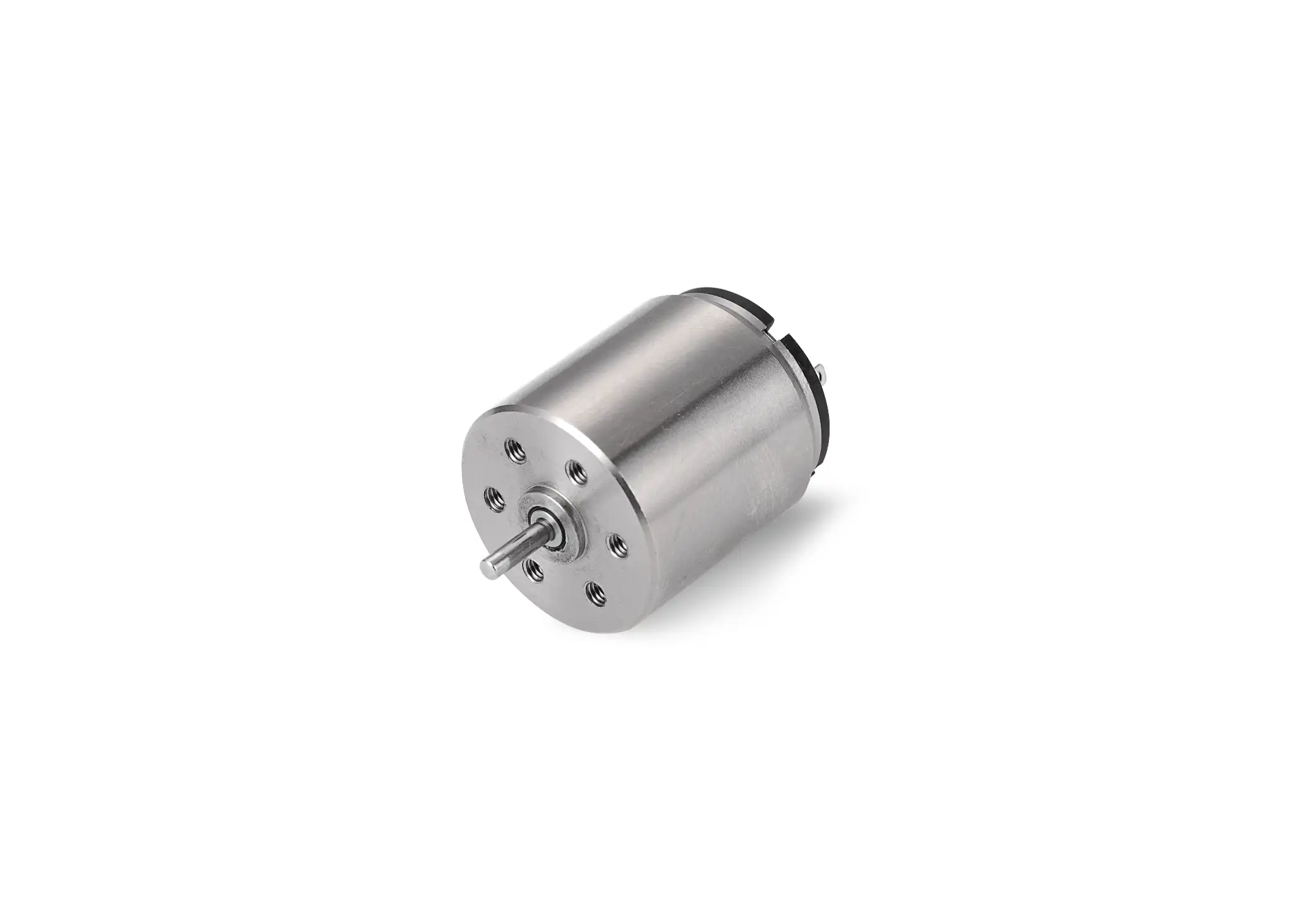

1715-Series
Voltage:12-24V DC
Speed:10,000 RPM
Diameter:17mm
Length:15mm
Torque:11.5 mNm

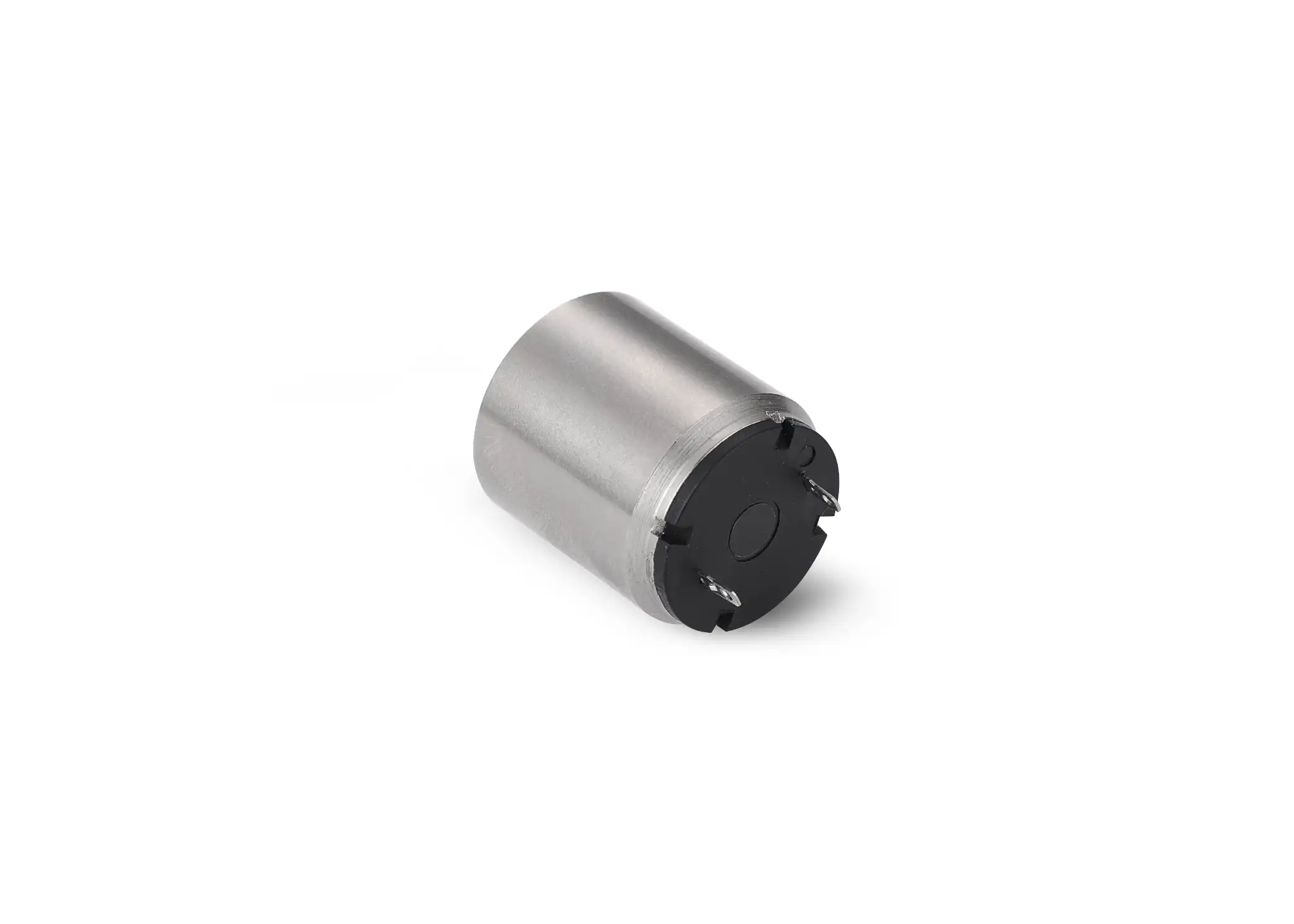

1718-Series
Voltage:12-24V DC
Speed:9,500 RPM
Diameter:17mm
Length:18mm
Torque:13.2 mNm
1723-Series
Voltage:12-24V DC
Speed:8,800 RPM
Diameter:17mm
Length:23mm
Torque:16.8 mNm
1725-Series
Voltage:12-24V DC
Speed:8,500 RPM
Diameter:17mm
Length:25mm
Torque:18.5 mNm

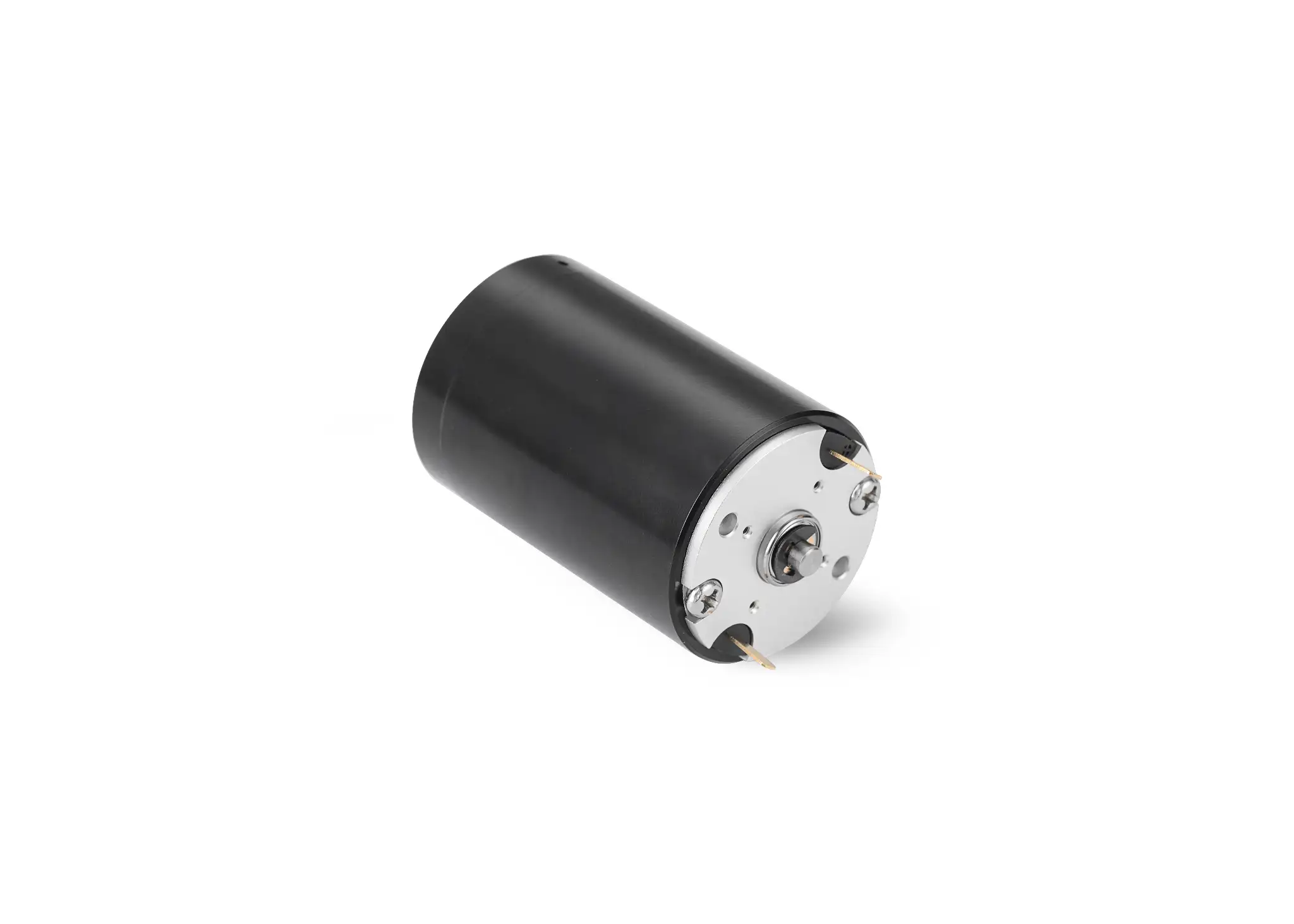

3265-Series
Voltage:24-48V DC
Speed:5,500 RPM
Diameter:32mm
Length:65mm
Torque:45.2 mNm

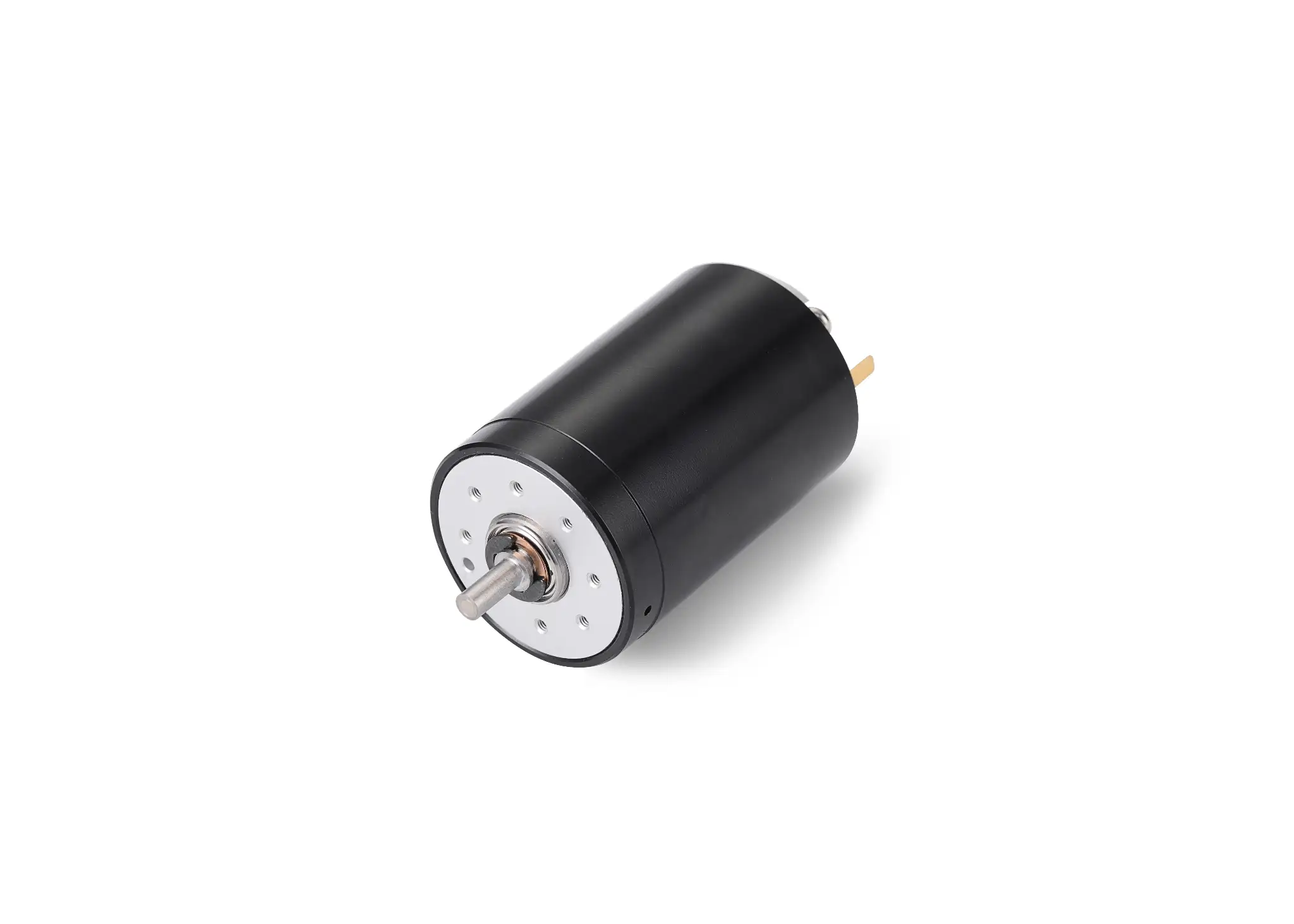

3553-Series
Voltage:24-48V DC
Speed:4,800 RPM
Diameter:35mm
Length:53mm
Torque:58.5 mNm

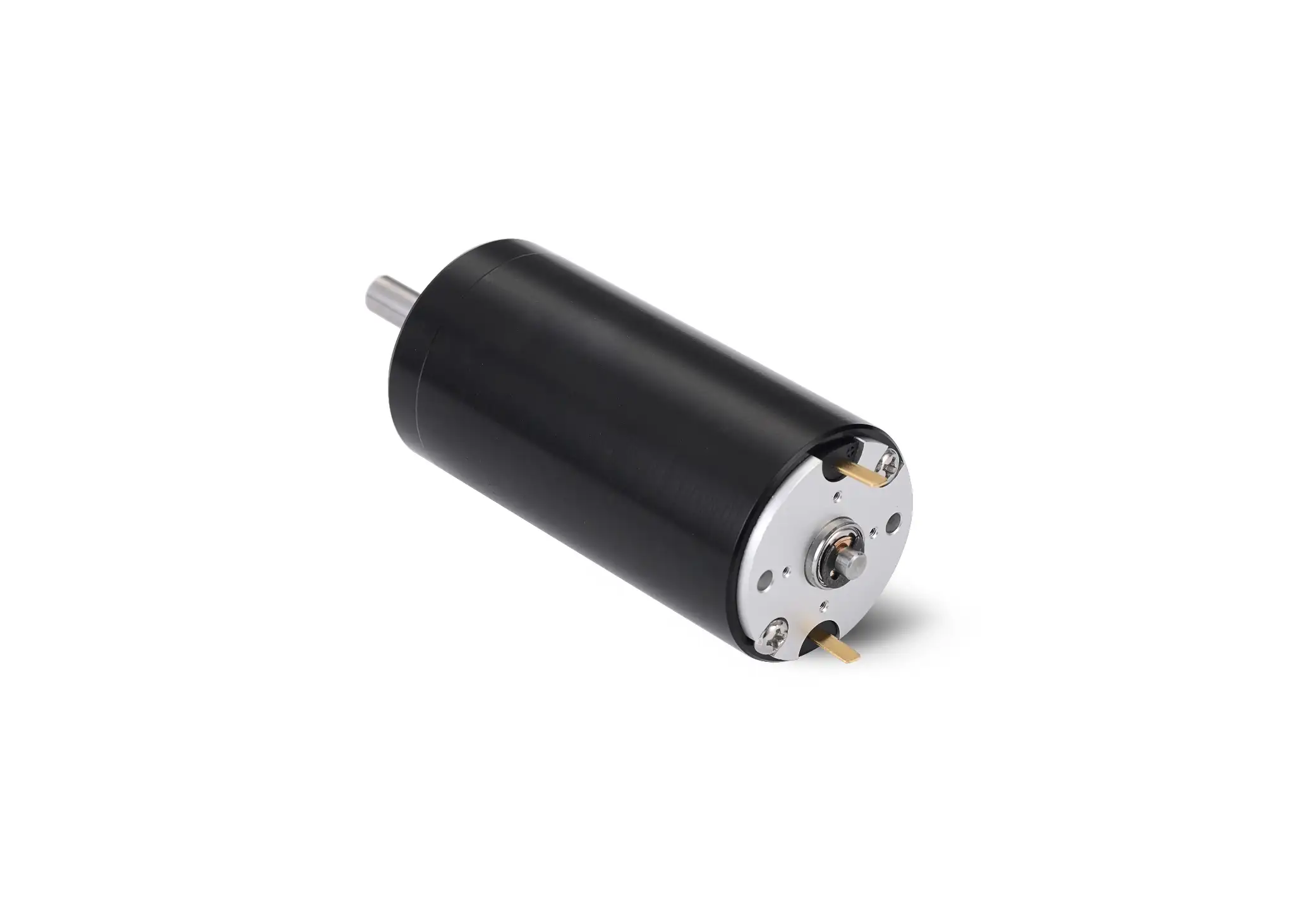

3570-Series
Voltage:24-48V DC
Speed:4,200 RPM
Diameter:35mm
Length:70mm
Torque:72.8 mNm

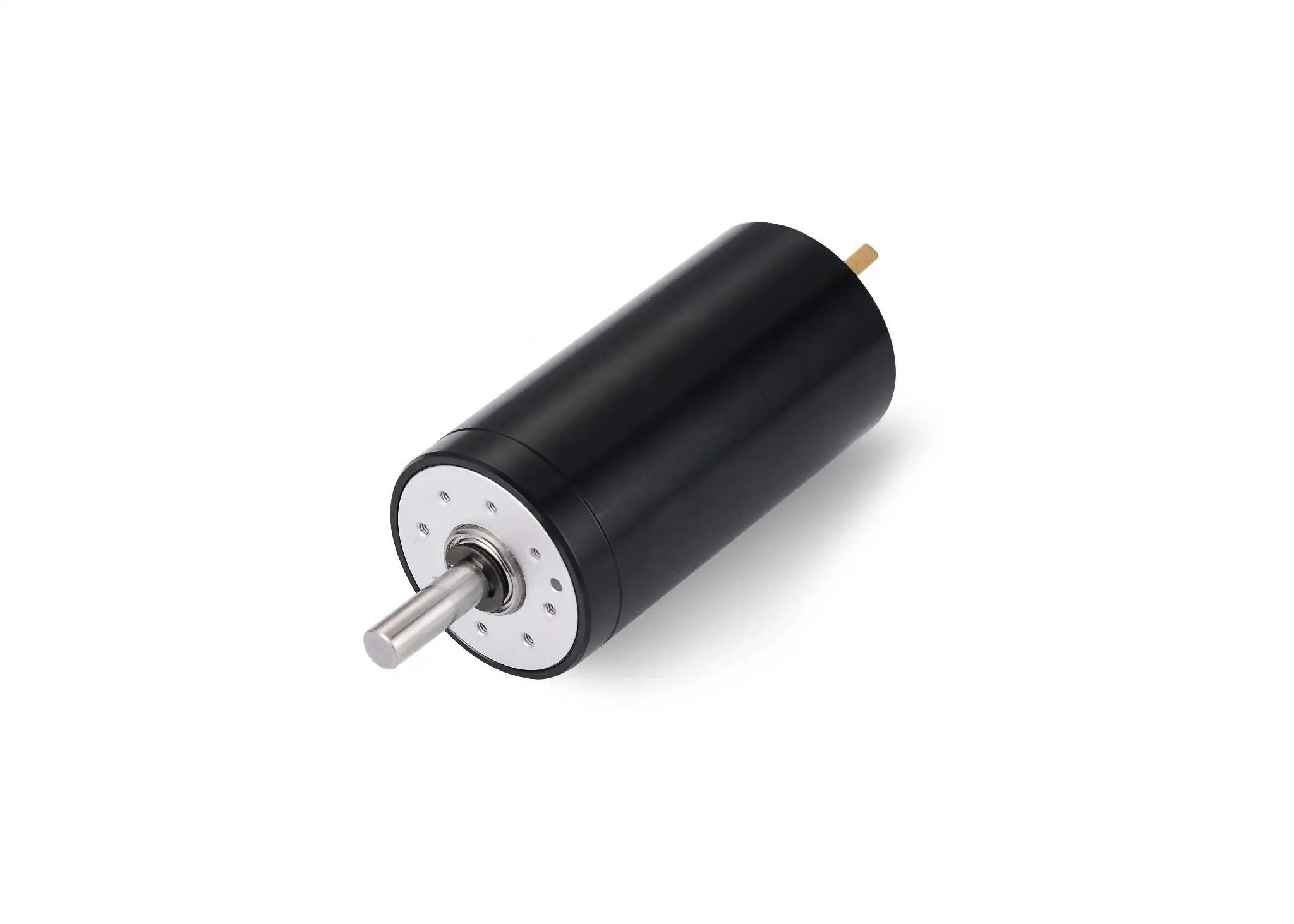

4270-Series
Voltage:24-48V DC
Speed:3,500 RPM
Diameter:42mm
Length:70mm
Torque:95.5 mNm
Key Features & Benefits
Brushed DC motors offer proven technology with excellent reliability and cost-effectiveness.
Reliable Performance
Carbon brush technology provides consistent torque and reliable operation
Cost Effective
Proven technology with excellent price-to-performance ratio
Wide Application
Suitable for various industrial and consumer applications
Typical Applications
Brushed DC motors are widely used across various industries for their reliability and cost-effectiveness.
Automotive accessories
Power tools
Home appliances
Industrial equipment
HVAC systems
Medical devices
Need a Custom Brushed DC Motor Solution?
Our engineering team can customize brushed DC motors to meet your specific performance and application requirements.
